2 Statistical Learning

2.1 Conceptual

2.1.1 Question 1

For each of parts (a) through (d), indicate whether we would generally expect the performance of a flexible statistical learning method to be better or worse than an inflexible method. Justify your answer.

  1. The sample size \(n\) is extremely large, and the number of predictors \(p\) is small.

Flexible best - opposite of b.

  1. The number of predictors \(p\) is extremely large, and the number of observations \(n\) is small.

Inflexible best - high chance of some predictors being randomly associated.

  1. The relationship between the predictors and response is highly non-linear.

Flexible best - inflexible leads to high bias.

  1. The variance of the error terms, i.e. \(\sigma^2 = Var(\epsilon)\), is extremely high.

Inflexible best - opposite of c.

2.1.2 Question 2

Explain whether each scenario is a classification or regression problem, and indicate whether we are most interested in inference or prediction. Finally, provide \(n\) and \(p\).

  1. We collect a set of data on the top 500 firms in the US. For each firm we record profit, number of employees, industry and the CEO salary. We are interested in understanding which factors affect CEO salary.

\(n=500\), \(p=3\), regression, inference.

  1. We are considering launching a new product and wish to know whether it will be a success or a failure. We collect data on 20 similar products that were previously launched. For each product we have recorded whether it was a success or failure, price charged for the product, marketing budget, competition price, and ten other variables.

\(n=20\), \(p=13\), classification, prediction.

  1. We are interested in predicting the % change in the USD/Euro exchange rate in relation to the weekly changes in the world stock markets. Hence we collect weekly data for all of 2012. For each week we record the % change in the USD/Euro, the % change in the US market, the % change in the British market, and the % change in the German market.

\(n=52\), \(p=3\), regression, prediction.

2.1.3 Question 3

We now revisit the bias-variance decomposition.

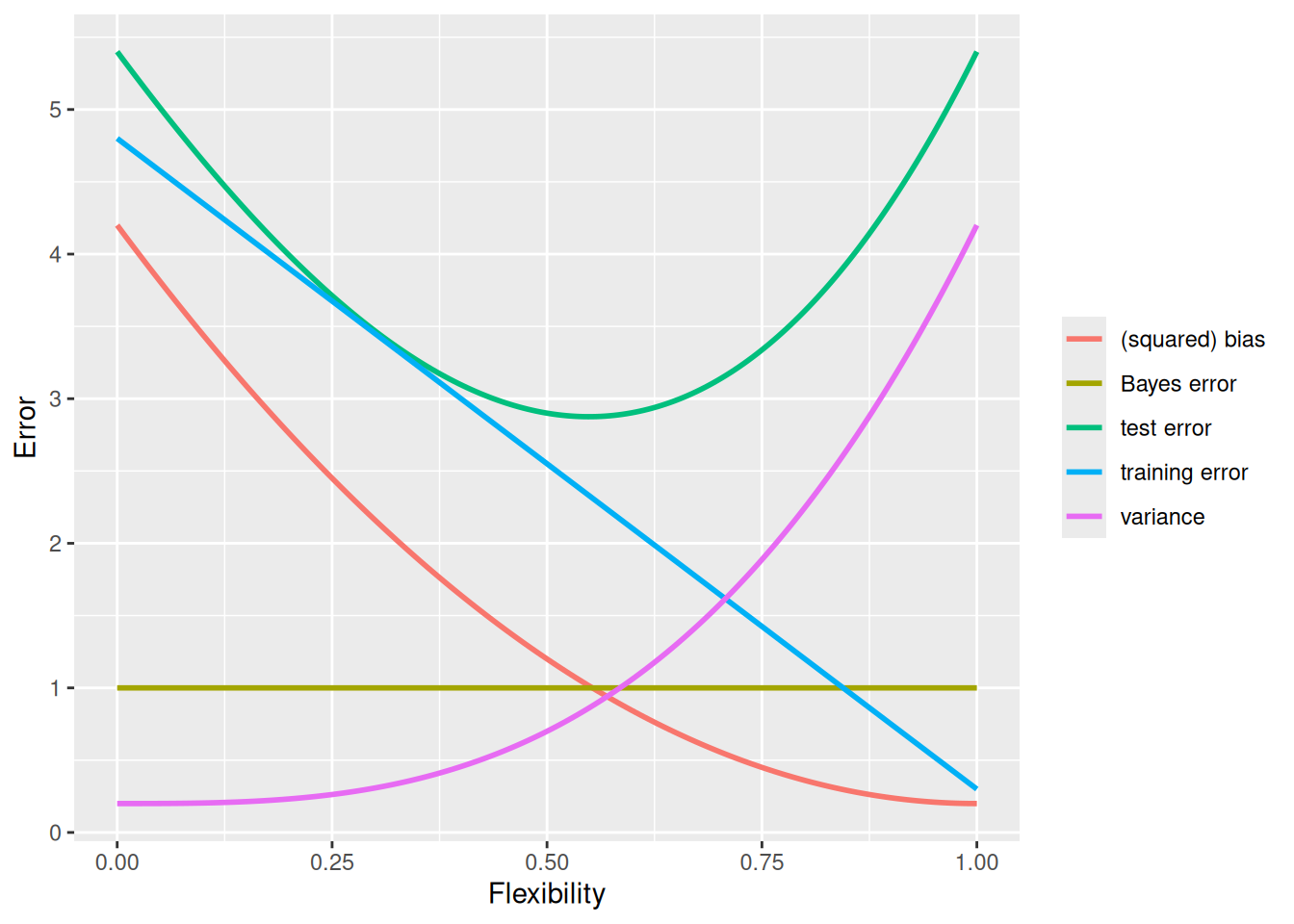

  1. Provide a sketch of typical (squared) bias, variance, training error, test error, and Bayes (or irreducible) error curves, on a single plot, as we go from less flexible statistical learning methods towards more flexible approaches. The x-axis should represent the amount of flexibility in the method, and the y-axis should represent the values for each curve. There should be five curves. Make sure to label each one.

  2. Explain why each of the five curves has the shape displayed in part (a).

  • (squared) bias: Decreases with increasing flexibility (Generally, more flexible methods result in less bias).
  • variance: Increases with increasing flexibility (In general, more flexible statistical methods have higher variance).
  • training error: Decreases with model flexibility (More complex models will better fit the training data).
  • test error: Decreases initially, then increases due to overfitting (less bias but more training error).
  • Bayes (irreducible) error: fixed (does not change with model).

2.1.4 Question 4

You will now think of some real-life applications for statistical learning.

  1. Describe three real-life applications in which classification might be useful. Describe the response, as well as the predictors. Is the goal of each application inference or prediction? Explain your answer.
  • Coffee machine cleaned? (day of week, person assigned), inference.
  • Is a flight delayed? (airline, airport etc), inference.
  • Beer type (IPA, pilsner etc.), prediction.
  1. Describe three real-life applications in which regression might be useful. Describe the response, as well as the predictors. Is the goal of each application inference or prediction? Explain your answer.
  • Amount of bonus paid (profitability, client feedback), prediction.
  • Person’s height, prediction.
  • House price, inference.
  1. Describe three real-life applications in which cluster analysis might be useful.
  • RNAseq tumour gene expression data.
  • SNPs in human populations.
  • Frequencies of mutations (with base pair context) in somatic mutation data.

2.1.5 Question 5

What are the advantages and disadvantages of a very flexible (versus a less flexible) approach for regression or classification? Under what circumstances might a more flexible approach be preferred to a less flexible approach? When might a less flexible approach be preferred?

Inflexible is more interpretable, fewer observations required, can be biased. Flexible can overfit (high error variance). In cases where we have high \(n\) or non-linear patterns flexible will be preferred.

2.1.6 Question 6

Describe the differences between a parametric and a non-parametric statistical learning approach. What are the advantages of a parametric approach to regression or classification (as opposed to a non-parametric approach)? What are its disadvantages?

Parametric uses (model) parameters. Parametric models can be more interpretable as there is a model behind how data is generated. However, the disadvantage is that the model might not reflect reality. If the model is too far from the truth, estimates will be poor and more flexible models can fit many different forms and require more parameters (leading to overfitting). Non-parametric approaches do not estimate a small number of parameters, so a large number of observations may be needed to obtain accurate estimates.

2.1.7 Question 7

The table below provides a training data set containing six observations, three predictors, and one qualitative response variable.

Obs. \(X_1\) \(X_2\) \(X_3\) \(Y\)
1 0 3 0 Red
2 2 0 0 Red
3 0 1 3 Red
4 0 1 2 Green
5 -1 0 1 Green
6 1 1 1 Red

Suppose we wish to use this data set to make a prediction for \(Y\) when \(X_1 = X_2 = X_3 = 0\) using \(K\)-nearest neighbors.

  1. Compute the Euclidean distance between each observation and the test point, \(X_1 = X_2 = X_3 = 0\).
dat <- data.frame(
  "x1" = c(0, 2, 0, 0, -1, 1),
  "x2" = c(3, 0, 1, 1, 0, 1),
  "x3" = c(0, 0, 3, 2, 1, 1),
  "y" = c("Red", "Red", "Red", "Green", "Green", "Red")
)

# Euclidean distance between points and c(0, 0, 0)
dist <- sqrt(dat[["x1"]]^2 + dat[["x2"]]^2 + dat[["x3"]]^2)
signif(dist, 3)
## [1] 3.00 2.00 3.16 2.24 1.41 1.73
  1. What is our prediction with \(K = 1\)? Why?
knn <- function(k) {
  names(which.max(table(dat[["y"]][order(dist)[1:k]])))
}
knn(1)
## [1] "Green"

Green (based on data point 5 only)

  1. What is our prediction with \(K = 3\)? Why?
knn(3)
## [1] "Red"

Red (based on data points 2, 5, 6)

  1. If the Bayes decision boundary in this problem is highly non-linear, then would we expect the best value for \(K\) to be large or small? Why?

Small (high \(k\) leads to linear boundaries due to averaging)

2.2 Applied

2.2.1 Question 8

This exercise relates to the College data set, which can be found in the file College.csv. It contains a number of variables for 777 different universities and colleges in the US. The variables are

  • Private : Public/private indicator
  • Apps : Number of applications received
  • Accept : Number of applicants accepted
  • Enroll : Number of new students enrolled
  • Top10perc : New students from top 10% of high school class
  • Top25perc : New students from top 25% of high school class
  • F.Undergrad : Number of full-time undergraduates
  • P.Undergrad : Number of part-time undergraduates
  • Outstate : Out-of-state tuition
  • Room.Board : Room and board costs
  • Books : Estimated book costs
  • Personal : Estimated personal spending
  • PhD : Percent of faculty with Ph.D.’s
  • Terminal : Percent of faculty with terminal degree
  • S.F.Ratio : Student/faculty ratio
  • perc.alumni : Percent of alumni who donate
  • Expend : Instructional expenditure per student
  • Grad.Rate : Graduation rate

Before reading the data into R, it can be viewed in Excel or a text editor.

  1. Use the read.csv() function to read the data into R. Call the loaded data college. Make sure that you have the directory set to the correct location for the data.
college <- read.csv("data/College.csv")

  1. Look at the data using the View() function. You should notice that the first column is just the name of each university. We don’t really want R to treat this as data. However, it may be handy to have these names for later. Try the following commands:

    rownames(college) <- college[, 1]
View(college)

    You should see that there is now a row.names column with the name of each university recorded. This means that R has given each row a name corresponding to the appropriate university. R will not try to perform calculations on the row names. However, we still need to eliminate the first column in the data where the names are stored. Try

    college <- college [, -1]
View(college)

    Now you should see that the first data column is Private. Note that another column labeled row.names now appears before the Private column. However, this is not a data column but rather the name that R is giving to each row.

rownames(college) <- college[, 1]
college <- college[, -1]

    1. Use the summary() function to produce a numerical summary of the variables in the data set.

    2. Use the pairs() function to produce a scatterplot matrix of the first ten columns or variables of the data. Recall that you can reference the first ten columns of a matrix A using A[,1:10].

    3. Use the plot() function to produce side-by-side boxplots of Outstate versus Private.

    4. Create a new qualitative variable, called Elite, by binning the Top10perc variable. We are going to divide universities into two groups based on whether or not the proportion of students coming from the top 10% of their high school classes exceeds 50%.

      > Elite <- rep("No", nrow(college))
> Elite[college$Top10perc > 50] <- "Yes"
> Elite <- as.factor(Elite)
> college <- data.frame(college, Elite)

      Use the summary() function to see how many elite universities there are. Now use the plot() function to produce side-by-side boxplots of Outstate versus Elite.

    5. Use the hist() function to produce some histograms with differing numbers of bins for a few of the quantitative variables. You may find the command par(mfrow=c(2,2)) useful: it will divide the print window into four regions so that four plots can be made simultaneously. Modifying the arguments to this function will divide the screen in other ways.

    6. Continue exploring the data, and provide a brief summary of what you discover.

summary(college)
##    Private               Apps           Accept          Enroll
##  Length:777         Min.   :   81   Min.   :   72   Min.   :  35
##  Class :character   1st Qu.:  776   1st Qu.:  604   1st Qu.: 242
##  Mode  :character   Median : 1558   Median : 1110   Median : 434
##                     Mean   : 3002   Mean   : 2019   Mean   : 780
##                     3rd Qu.: 3624   3rd Qu.: 2424   3rd Qu.: 902
##                     Max.   :48094   Max.   :26330   Max.   :6392
##    Top10perc       Top25perc      F.Undergrad     P.Undergrad
##  Min.   : 1.00   Min.   :  9.0   Min.   :  139   Min.   :    1.0
##  1st Qu.:15.00   1st Qu.: 41.0   1st Qu.:  992   1st Qu.:   95.0
##  Median :23.00   Median : 54.0   Median : 1707   Median :  353.0
##  Mean   :27.56   Mean   : 55.8   Mean   : 3700   Mean   :  855.3
##  3rd Qu.:35.00   3rd Qu.: 69.0   3rd Qu.: 4005   3rd Qu.:  967.0
##  Max.   :96.00   Max.   :100.0   Max.   :31643   Max.   :21836.0
##     Outstate       Room.Board       Books           Personal
##  Min.   : 2340   Min.   :1780   Min.   :  96.0   Min.   : 250
##  1st Qu.: 7320   1st Qu.:3597   1st Qu.: 470.0   1st Qu.: 850
##  Median : 9990   Median :4200   Median : 500.0   Median :1200
##  Mean   :10441   Mean   :4358   Mean   : 549.4   Mean   :1341
##  3rd Qu.:12925   3rd Qu.:5050   3rd Qu.: 600.0   3rd Qu.:1700
##  Max.   :21700   Max.   :8124   Max.   :2340.0   Max.   :6800
##       PhD            Terminal       S.F.Ratio      perc.alumni
##  Min.   :  8.00   Min.   : 24.0   Min.   : 2.50   Min.   : 0.00
##  1st Qu.: 62.00   1st Qu.: 71.0   1st Qu.:11.50   1st Qu.:13.00
##  Median : 75.00   Median : 82.0   Median :13.60   Median :21.00
##  Mean   : 72.66   Mean   : 79.7   Mean   :14.09   Mean   :22.74
##  3rd Qu.: 85.00   3rd Qu.: 92.0   3rd Qu.:16.50   3rd Qu.:31.00
##  Max.   :103.00   Max.   :100.0   Max.   :39.80   Max.   :64.00
##      Expend        Grad.Rate
##  Min.   : 3186   Min.   : 10.00
##  1st Qu.: 6751   1st Qu.: 53.00
##  Median : 8377   Median : 65.00
##  Mean   : 9660   Mean   : 65.46
##  3rd Qu.:10830   3rd Qu.: 78.00
##  Max.   :56233   Max.   :118.00
college$Private <- college$Private == "Yes"

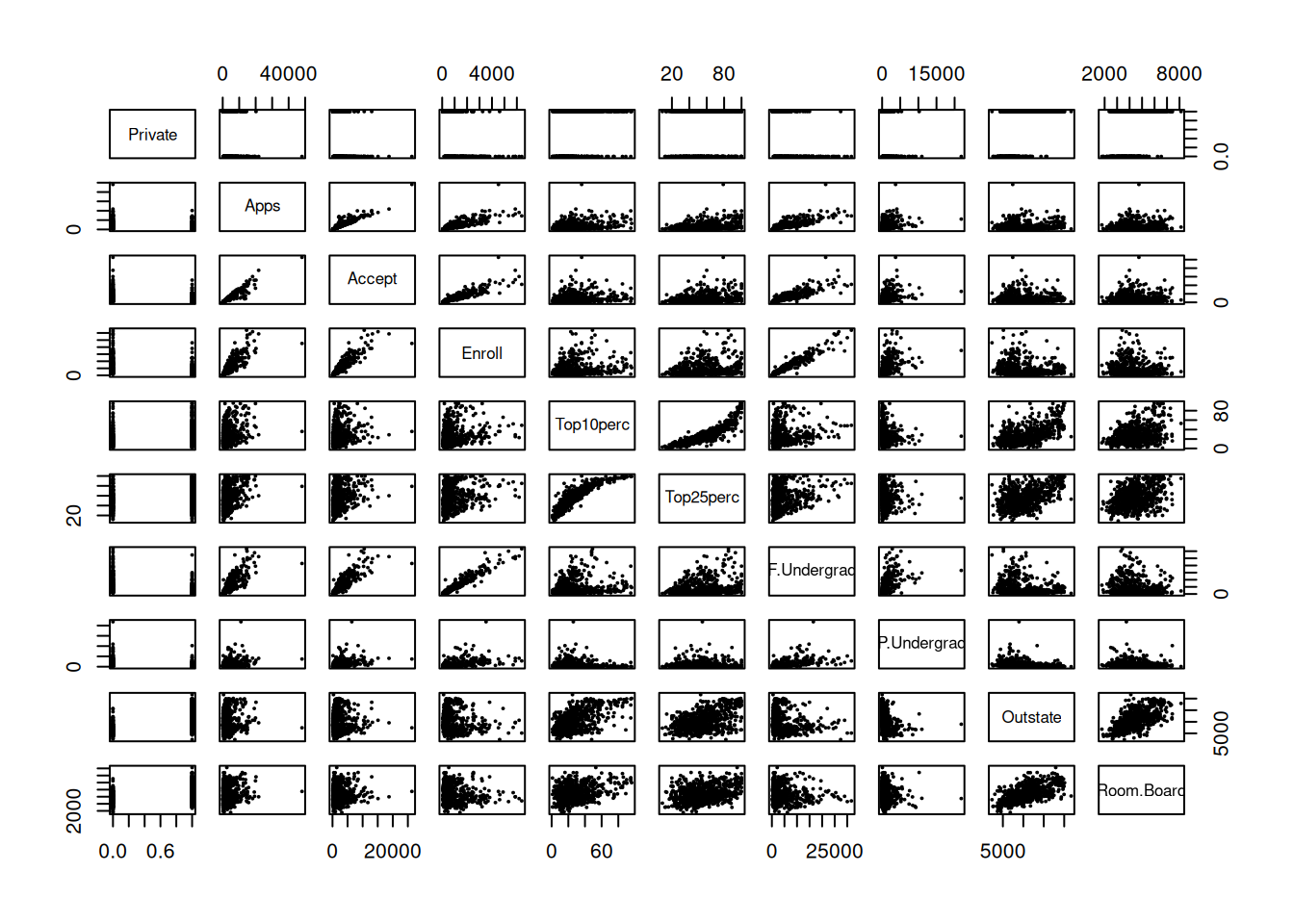

pairs(college[, 1:10], cex = 0.2)

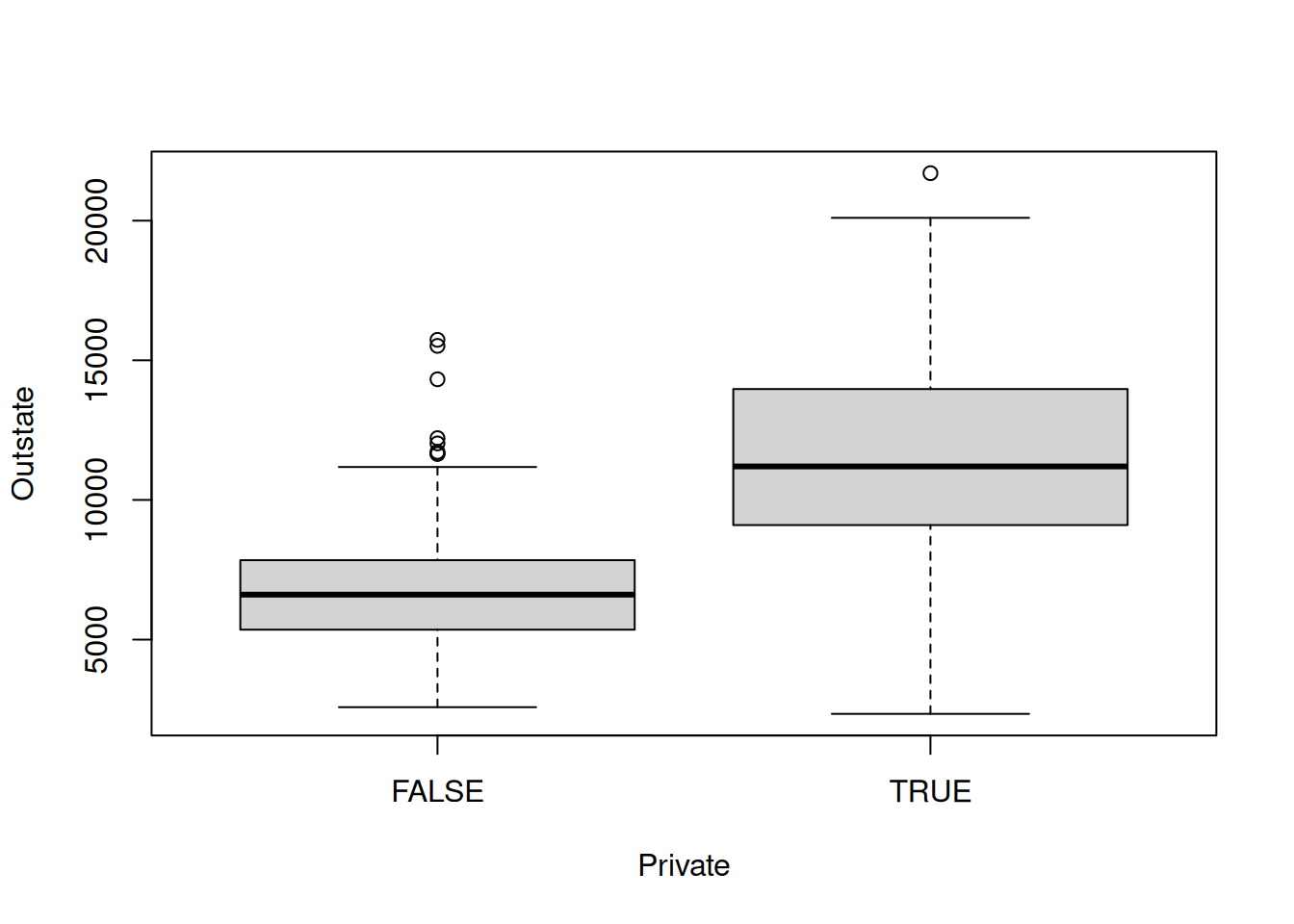

plot(college$Outstate ~ factor(college$Private), xlab = "Private", ylab = "Outstate")

college$Elite <- factor(ifelse(college$Top10perc > 50, "Yes", "No"))
summary(college$Elite)
##  No Yes
## 699  78

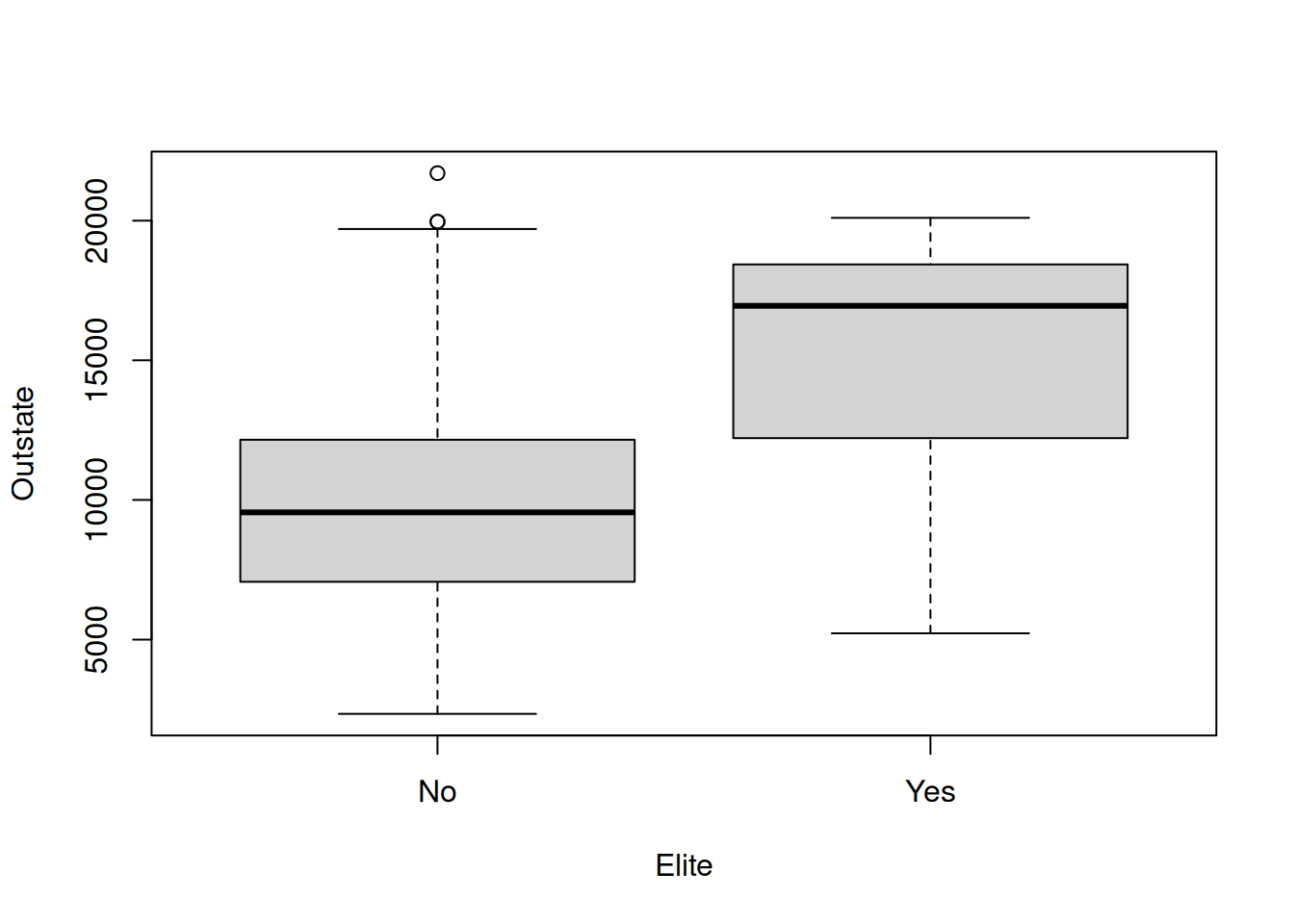

plot(college$Outstate ~ college$Elite, xlab = "Elite", ylab = "Outstate")

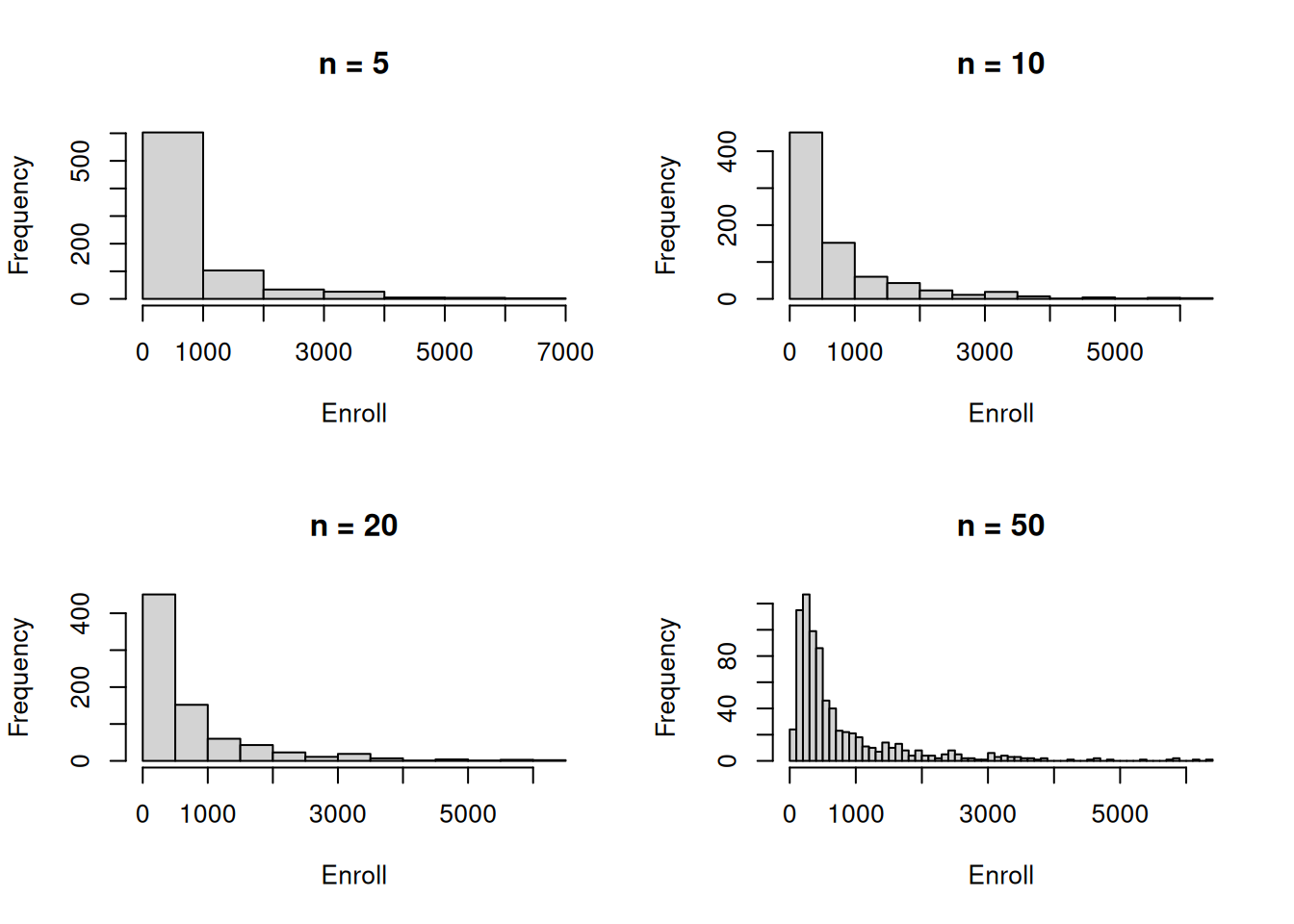

par(mfrow = c(2,2))
for (n in c(5, 10, 20, 50)) {
  hist(college$Enroll, breaks = n, main = paste("n =", n), xlab = "Enroll")
}

chisq.test(college$Private, college$Elite)
##
##  Pearson's Chi-squared test with Yates' continuity correction
##
## data:  college$Private and college$Elite
## X-squared = 4.3498, df = 1, p-value = 0.03701

Whether a college is Private and Elite is not random!

2.2.2 Question 9

This exercise involves the Auto data set studied in the lab. Make sure that the missing values have been removed from the data.

x <- read.table("data/Auto.data", header = TRUE, na.strings = "?")
x <- na.omit(x)
  1. Which of the predictors are quantitative, and which are qualitative?
sapply(x, class)
##          mpg    cylinders displacement   horsepower       weight acceleration
##    "numeric"    "integer"    "numeric"    "numeric"    "numeric"    "numeric"
##         year       origin         name
##    "integer"    "integer"  "character"
numeric <- which(sapply(x, class) == "numeric")
names(numeric)
## [1] "mpg"          "displacement" "horsepower"   "weight"       "acceleration"
  1. What is the range of each quantitative predictor? You can answer this using the range() function.
sapply(x[, numeric], function(x) diff(range(x)))
##          mpg displacement   horsepower       weight acceleration
##         37.6        387.0        184.0       3527.0         16.8
  1. What is the mean and standard deviation of each quantitative predictor?
library(tidyverse)
## ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
## ✔ dplyr     1.1.4     ✔ readr     2.1.5
## ✔ forcats   1.0.0     ✔ stringr   1.5.1
## ✔ ggplot2   3.5.1     ✔ tibble    3.2.1
## ✔ lubridate 1.9.3     ✔ tidyr     1.3.1
## ✔ purrr     1.0.2
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## ✖ dplyr::filter() masks stats::filter()
## ✖ dplyr::lag()    masks stats::lag()
## ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(knitr)

x[, numeric] |>
  pivot_longer(everything()) |>
  group_by(name) |>
  summarise(
    Mean = mean(value),
    SD = sd(value)
  ) |>
  kable()
name Mean SD
acceleration 15.54133 2.758864
displacement 194.41199 104.644004
horsepower 104.46939 38.491160
mpg 23.44592 7.805008
weight 2977.58418 849.402560
  1. Now remove the 10th through 85th observations. What is the range, mean, and standard deviation of each predictor in the subset of the data that remains?
x[-(10:85), numeric] |>
  pivot_longer(everything()) |>
  group_by(name) |>
  summarise(
    Range = diff(range(value)),
    Mean = mean(value),
    SD = sd(value)
  ) |>
  kable()
name Range Mean SD
acceleration 16.3 15.72690 2.693721
displacement 387.0 187.24051 99.678367
horsepower 184.0 100.72152 35.708853
mpg 35.6 24.40443 7.867283
weight 3348.0 2935.97152 811.300208
  1. Using the full data set, investigate the predictors graphically, using scatterplots or other tools of your choice. Create some plots highlighting the relationships among the predictors. Comment on your findings.

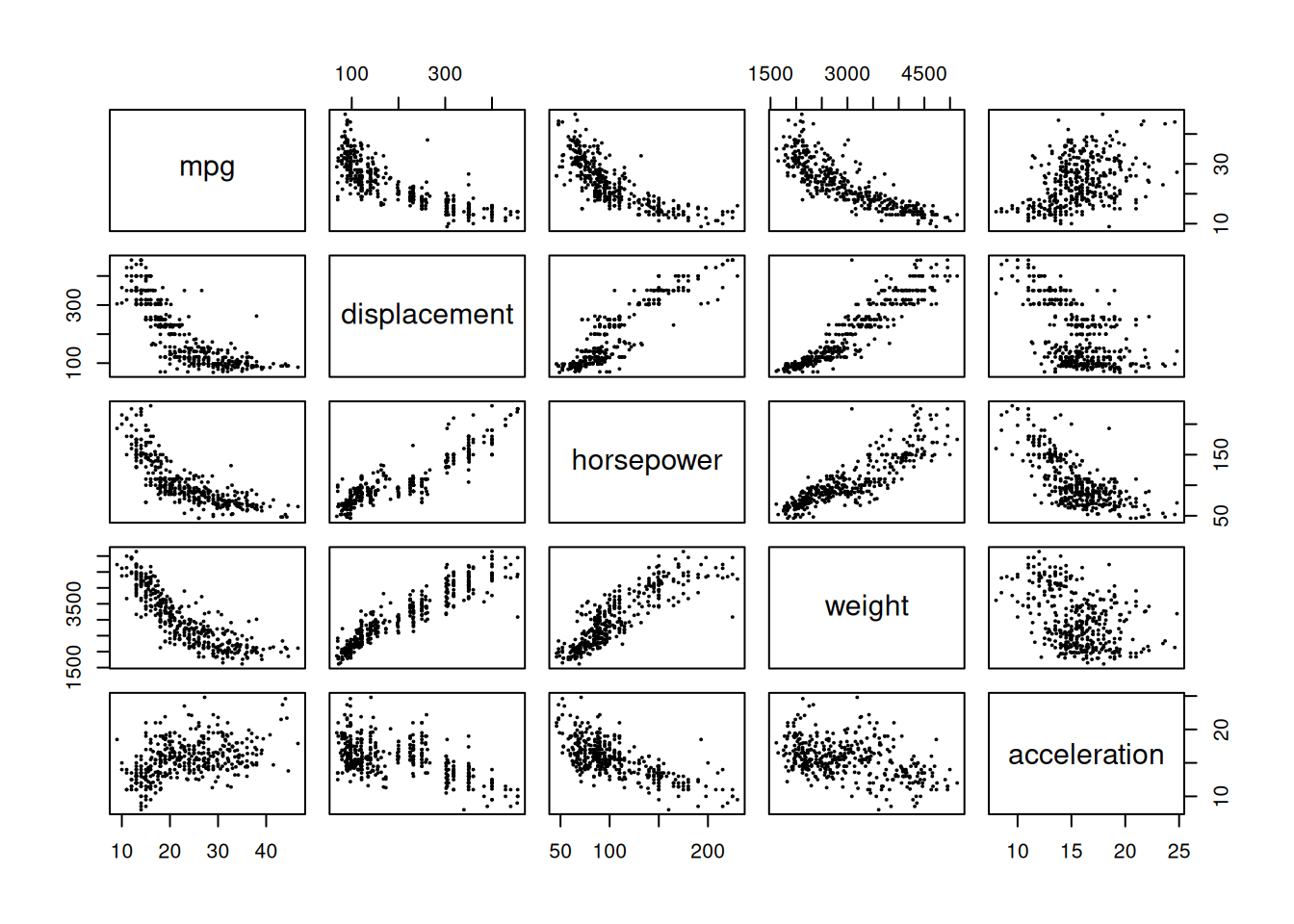

pairs(x[, numeric], cex = 0.2)

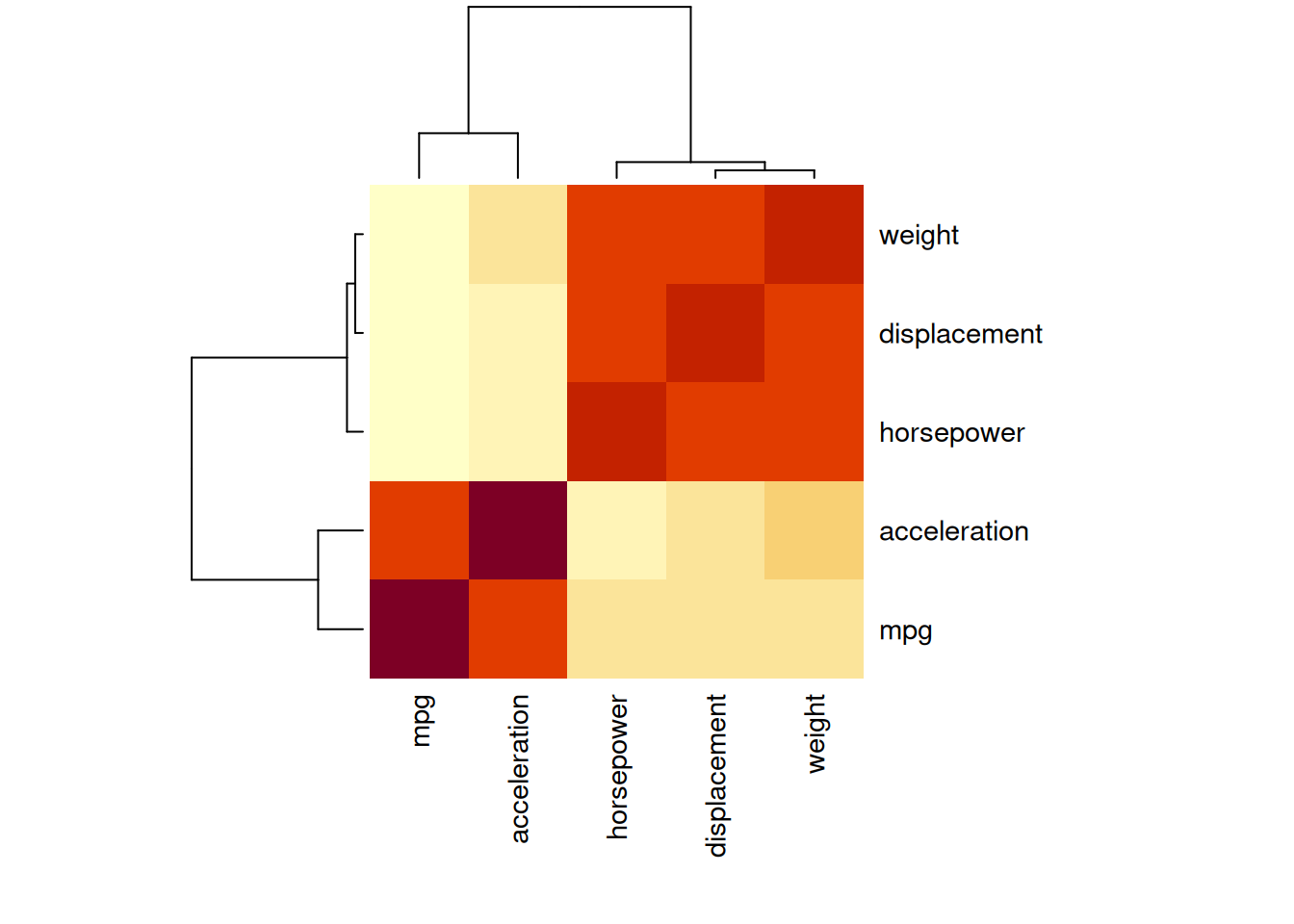

cor(x[, numeric]) |>
  kable()
mpg displacement horsepower weight acceleration
mpg 1.0000000 -0.8051269 -0.7784268 -0.8322442 0.4233285
displacement -0.8051269 1.0000000 0.8972570 0.9329944 -0.5438005
horsepower -0.7784268 0.8972570 1.0000000 0.8645377 -0.6891955
weight -0.8322442 0.9329944 0.8645377 1.0000000 -0.4168392
acceleration 0.4233285 -0.5438005 -0.6891955 -0.4168392 1.0000000
heatmap(cor(x[, numeric]), cexRow = 1.1, cexCol = 1.1, margins = c(8, 8))

Many of the variables appear to be highly (positively or negatively) correlated with some relationships being non-linear.

  1. Suppose that we wish to predict gas mileage (mpg) on the basis of the other variables. Do your plots suggest that any of the other variables might be useful in predicting mpg? Justify your answer.

Yes, since other variables are correlated. However, horsepower, weight and displacement are highly related.

2.2.3 Question 10

This exercise involves the Boston housing data set.

  1. To begin, load in the Boston data set. The Boston data set is part of the ISLR2 library in R.

    > library(ISLR2)

    Now the data set is contained in the object Boston.

    > Boston

    Read about the data set:

    > ?Boston

    How many rows are in this data set? How many columns? What do the rows and columns represent?

library(ISLR2)
dim(Boston)
## [1] 506  13
  1. Make some pairwise scatterplots of the predictors (columns) in this data set. Describe your findings.
library(ggplot2)
library(tidyverse)
ggplot(Boston, aes(nox, rm)) + geom_point()

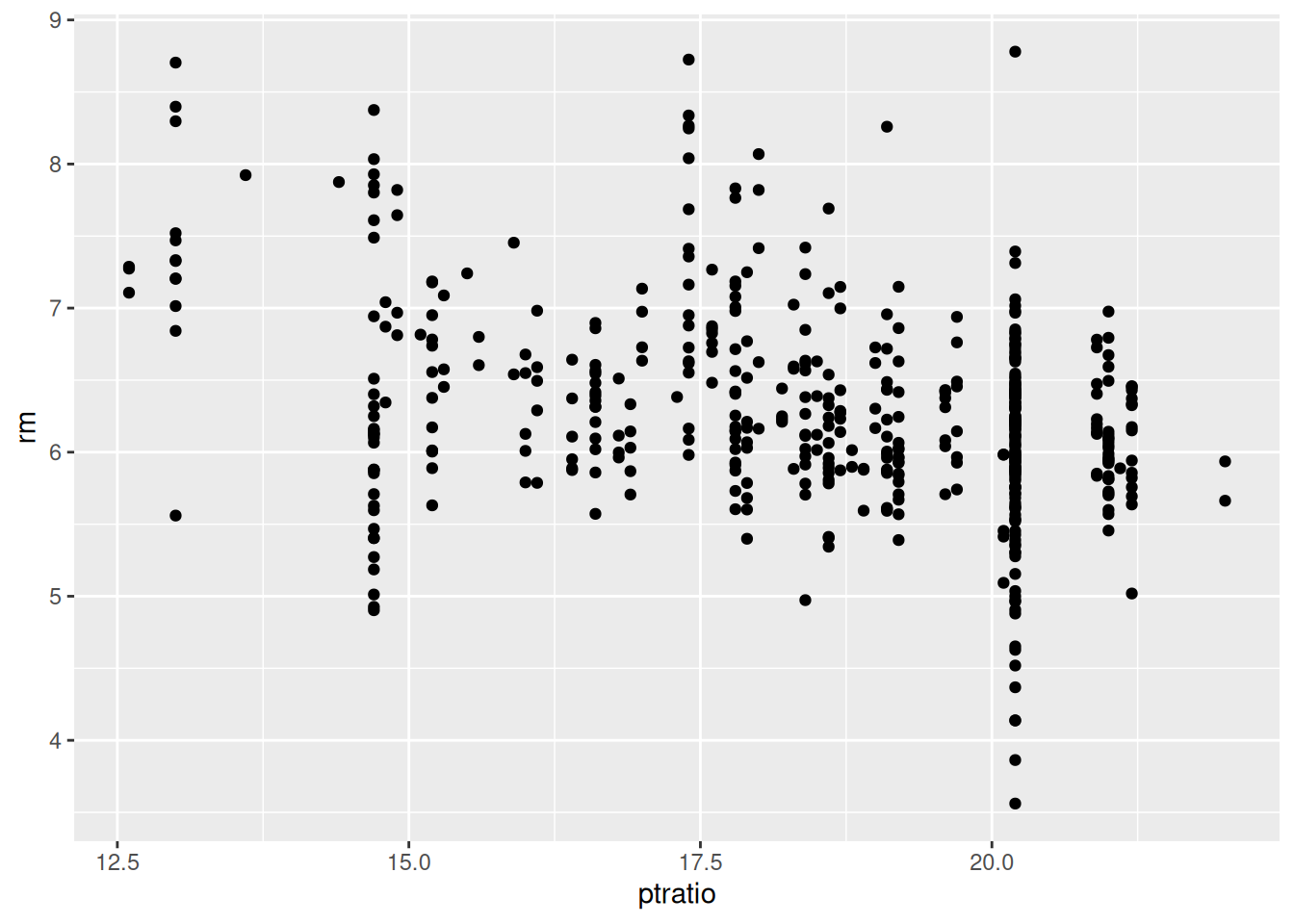

ggplot(Boston, aes(ptratio, rm)) + geom_point()

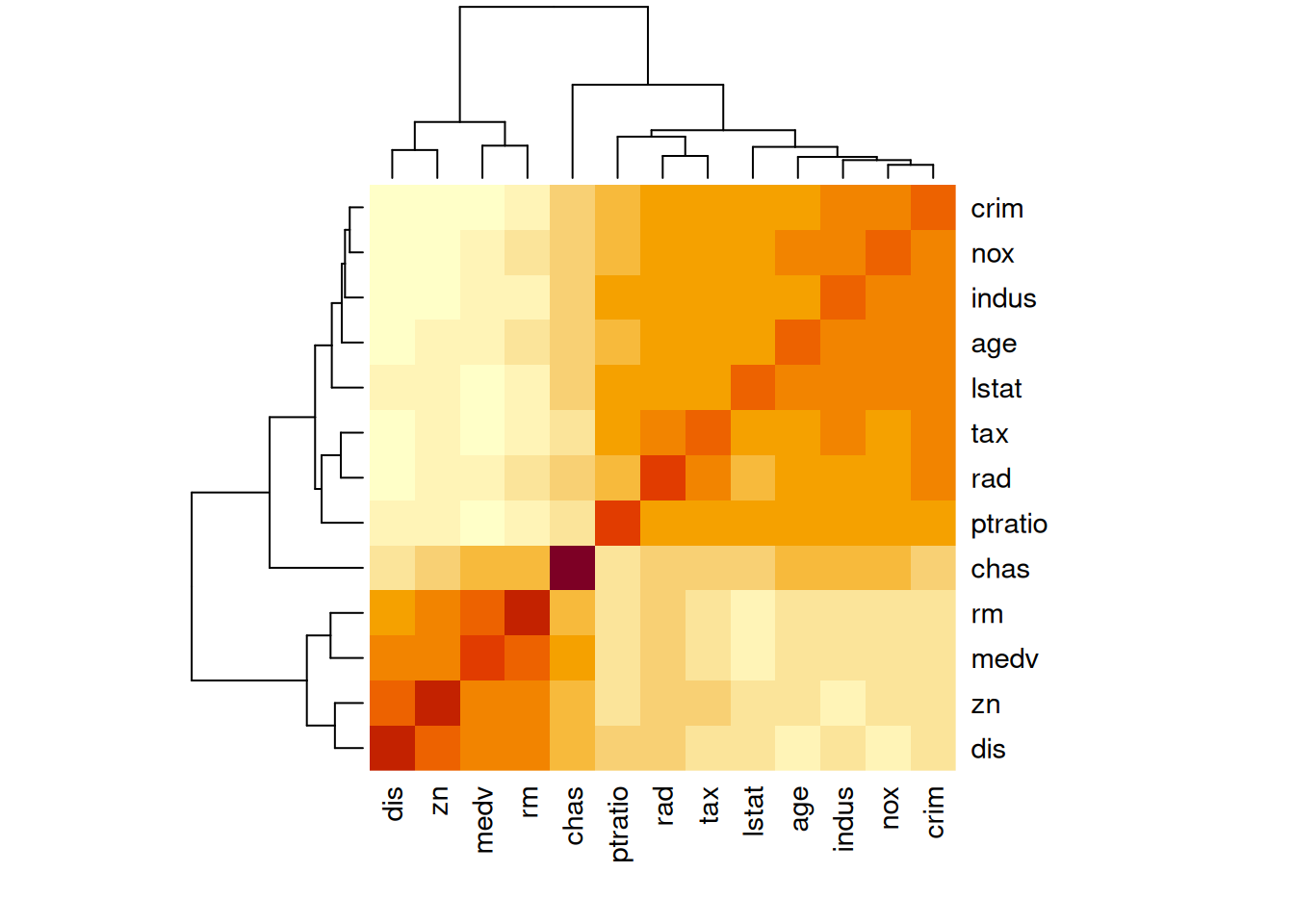

heatmap(cor(Boston, method = "spearman"), cexRow = 1.1, cexCol = 1.1)

  1. Are any of the predictors associated with per capita crime rate? If so, explain the relationship.

Yes

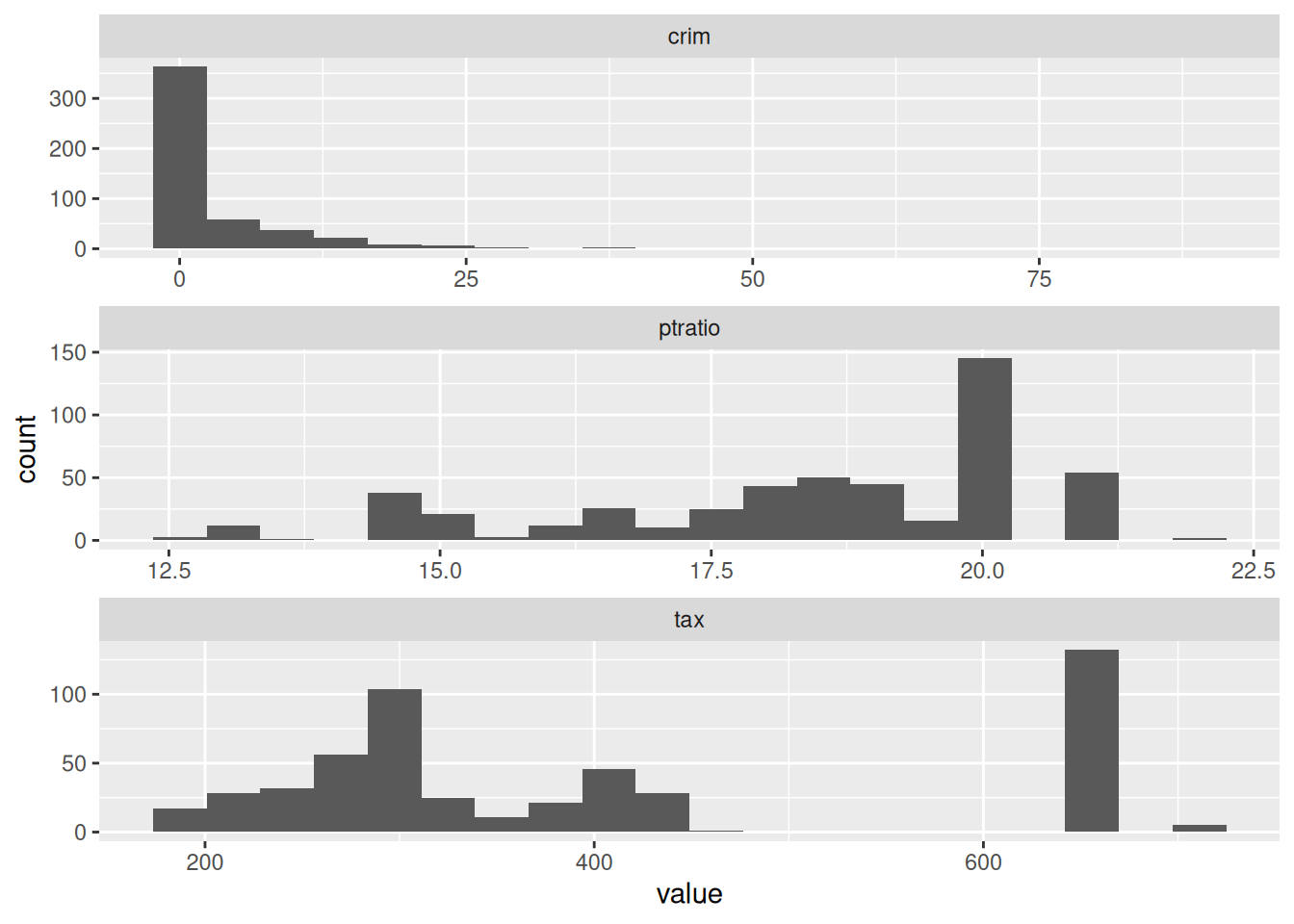

  1. Do any of the census tracts of Boston appear to have particularly high crime rates? Tax rates? Pupil-teacher ratios? Comment on the range of each predictor.
Boston |>
  pivot_longer(cols = 1:13) |>
  filter(name %in% c("crim", "tax", "ptratio")) |>
  ggplot(aes(value)) +
    geom_histogram(bins = 20) +
    facet_wrap(~name, scales="free", ncol= 1)

Yes, particularly crime and tax rates.

  1. How many of the census tracts in this data set bound the Charles river?
sum(Boston$chas)
## [1] 35
  1. What is the median pupil-teacher ratio among the towns in this data set?
median(Boston$ptratio)
## [1] 19.05
  1. Which census tract of Boston has lowest median value of owner-occupied homes? What are the values of the other predictors for that census tract, and how do those values compare to the overall ranges for those predictors? Comment on your findings.
Boston[Boston$medv == min(Boston$medv), ] |>
  kable()
crim zn indus chas nox rm age dis rad tax ptratio lstat medv
399 38.3518 0 18.1 0 0.693 5.453 100 1.4896 24 666 20.2 30.59 5
406 67.9208 0 18.1 0 0.693 5.683 100 1.4254 24 666 20.2 22.98 5
sapply(Boston, quantile) |>
  kable()
crim zn indus chas nox rm age dis rad tax ptratio lstat medv
0% 0.006320 0.0 0.46 0 0.385 3.5610 2.900 1.129600 1 187 12.60 1.730 5.000
25% 0.082045 0.0 5.19 0 0.449 5.8855 45.025 2.100175 4 279 17.40 6.950 17.025
50% 0.256510 0.0 9.69 0 0.538 6.2085 77.500 3.207450 5 330 19.05 11.360 21.200
75% 3.677083 12.5 18.10 0 0.624 6.6235 94.075 5.188425 24 666 20.20 16.955 25.000
100% 88.976200 100.0 27.74 1 0.871 8.7800 100.000 12.126500 24 711 22.00 37.970 50.000
  1. In this data set, how many of the census tract average more than seven rooms per dwelling? More than eight rooms per dwelling? Comment on the census tracts that average more than eight rooms per dwelling.
sum(Boston$rm > 7)
## [1] 64
sum(Boston$rm > 8)
## [1] 13

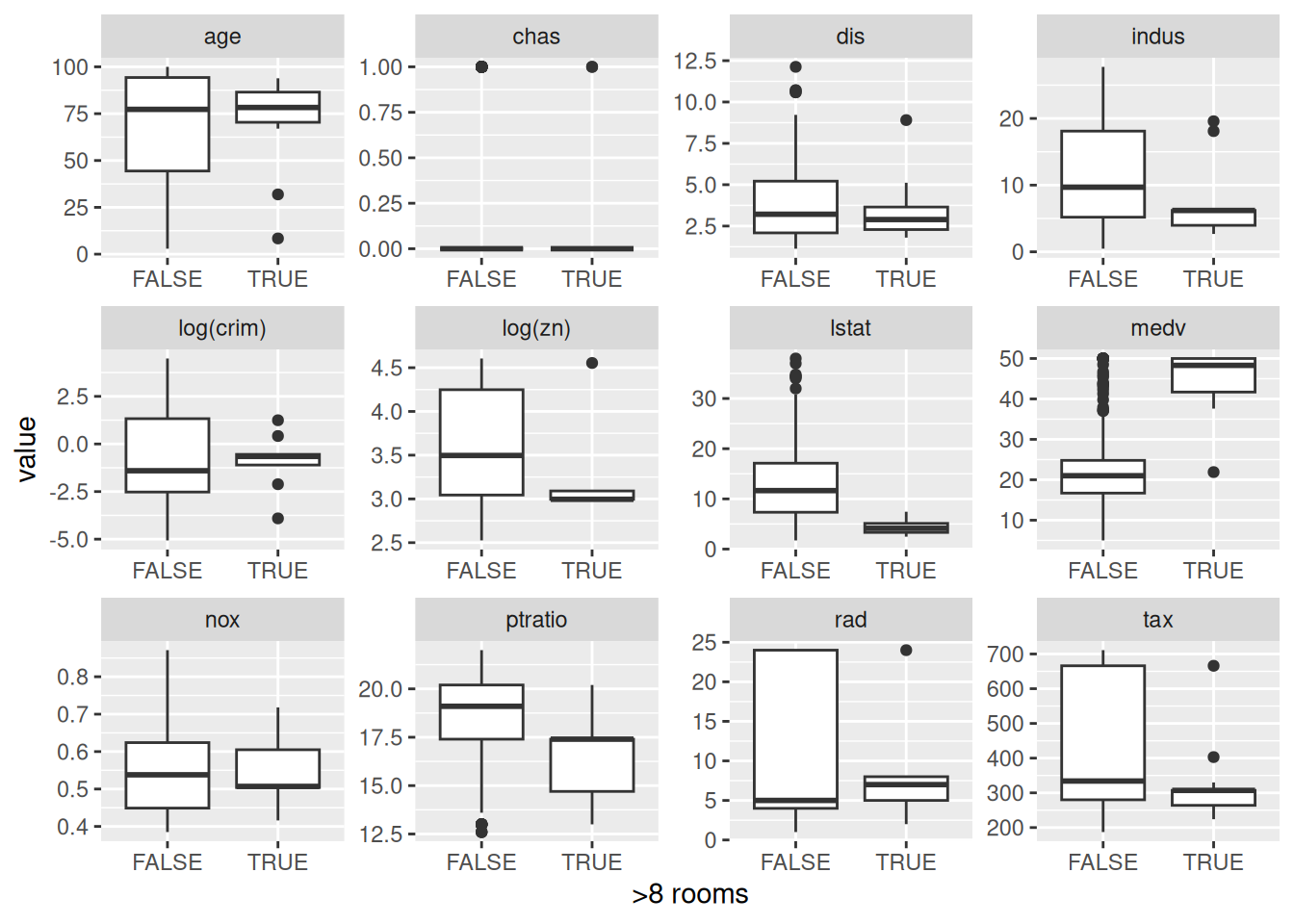

Let’s compare median statistics for those census tracts with more than eight rooms per dwelling on average, with the statistics for those with fewer.

Boston |>
  mutate(
    `log(crim)` = log(crim),
    `log(zn)` = log(zn)
  ) |>
  select(-c(crim, zn)) |>
  pivot_longer(!rm) |>
  mutate(">8 rooms" = rm > 8) |>
  ggplot(aes(`>8 rooms`, value)) +
    geom_boxplot() +
    facet_wrap(~name, scales = "free")
## Warning: Removed 372 rows containing non-finite outside the scale range
## (`stat_boxplot()`).

Census tracts with big average properties (more than eight rooms per dwelling) have higher median value (medv), a lower proportion of non-retail business acres (indus), a lower pupil-teacher ratio (ptratio), a lower status of the population (lstat) among other differences.
